Figure 1.
Figure 1.

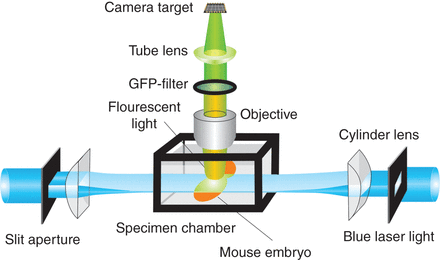

Principle of UM. The sample is illuminated from the side by two thin counterpropagating sheets of laser light. Fluorescent light is thus emitted only from a thin optical section and collected by the objective. Hence, photobleaching in out-of-focus regions is avoided. (Adapted, with permission, from Becker et al. 2008.)

This Article

  1. Cold Spring Harb Protoc 2013: pdb.top076539-
